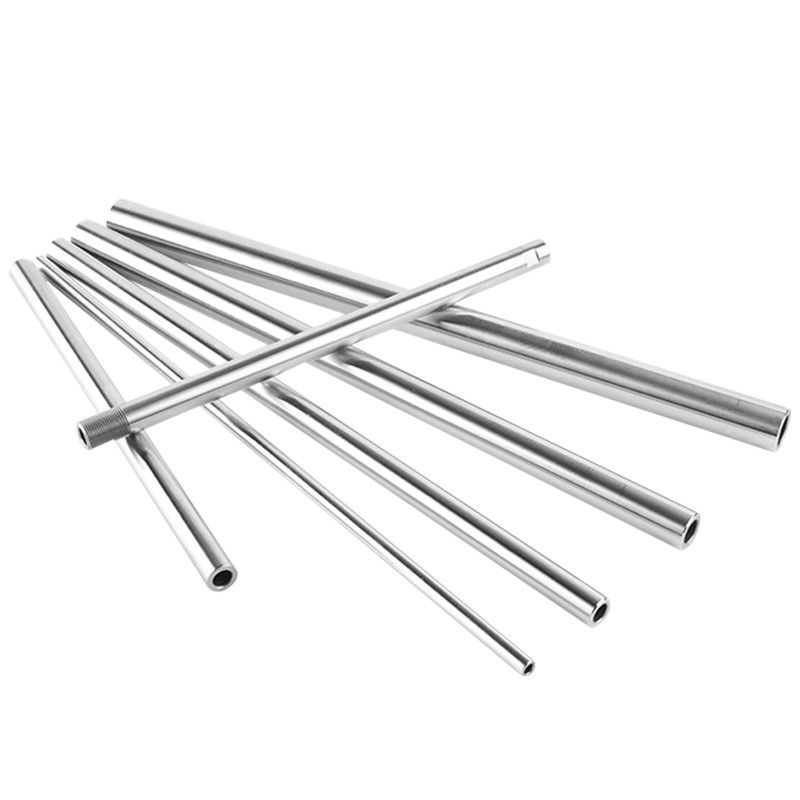

1000mm - 8000mm Steel Tie Rod High Strength For Hydraulic Machine

1000mm - 8000mm Steel Tie Rod High Strength For Hydraulic Machine

Brand Name:	chunfa
MOQ:	1 ton
Price:	Negotiation
Delivery Time:	30days
Payment Terms:	L/C, T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO9001:2008

Adjustment Style:

Turnbuckle

Application:

Steering System

Chrome Thickness:

25 +/- 5 Micron

Compatibility:

Universal

Corrosion Resistance:

High

Diameter Tolerance:

ISO F7

Finish:

Chrome Plated

Installation Method:

Bolt-On

Length:

Adjustable

Load Capacity:

5000 Lbs

Material:

Steel

Ovality:

Half Of The Tolerance ISO F7

Package Contents:

1 Tie Rod, 2 Jam Nuts

Surface Roughness:

Ra≤0.2micron And Rt≤2micro

Warranty:

1 Year Limited

Packaging Details:

Anti rust oil to be applied on material and each rod to be packed in paper sleeve

Supply Ability:

400ton per month

Highlight:

8000mm Steel Tie Rod

Steel Tie Rod High Strength

Product Description

1000mm - 8000mm Steel Tie Rod High Strength For Hydraulic Machine

Product:	Custom Tie Rod	Length:	1000mm - 8000mm
Diameter:	6mm - 1000mm	Diameter Tolerance:	ISO F7
Straightness:	Not More Than 0.2 MM/M	Ovality:	Half Of The Tolerance ISO F7
High Light:	tie rods , steel tie rods

1000mm - 8000mm Steel Tie Rod High strength For Hydraulic Machine

Detailed Product Description

1. Material: 42CrMo4, 40Cr, CK45,ST52, 20MnV6

2. Tensile strength: Not less than 610 N/MM2

3. Yield strength: Not less than 355 N/MM2

4. Complete manufactured equipment

5. Application: Mining machinery industry, textile / printing industry and so on

Detailed Description

1.CHEMICAL COMPOSITION

Material	C%	Mn%	Si%	S%	P%	V%	Cr%
Ck45	0.42-0.50	0.50-0.80	0.04	0.035	0.035
ST52	0.22	1.6	0.55	0.035	0.04
20MnV6	0.16-0.22	1.30-1.70	0.10-0.50	0.035	0.035	0.10-0.20
42CrMo4	0.38-0.45	0.60-0.90	0.15-0.40	0.03	0.03		0.90-1.20
40Cr	0.37-0.45	0.50-0.80	0.17-0.37				0.80-1.10

2.MECHANCIAL PROPERTIES

Material	T.S N/MM2	Y.S N/MM2	E%(MIN)	CHARPY	CONDITION
CK45	610	355	15	>41J	NORMALIZE
CK45	800	630	20	>41J	Q + T
ST52	500	355	22		NORMALIZE
20MnV6	750	590	12	>40J	NORMALIZE
42CrMo4	980	850	14	>47J	Q + T
40Cr	1000	800	10		Q + T

3. SUPPLY CONDITION

Ground and chrome plated

4. CHROME THICKNESS

20 to 30 micron

5. SURFACE ROUGHNESS

Ra≤0.2 micron and Rt≤2 micro

6. TOLERANCES ON DIA

ISO f7 on the diameter

7.OVALITY

Half of the tolerance ISO f7

8. STRAIGHTNESS

≤0.2MM/M

9. SURFACE HARDNESS

850-1150HV (vickers 100g)

10.COHESION

No cracks,breaking or detaching after thermic shock(warming up at 300 celsius degrees and cooling

in water)

11 .POROSITY

Test according to ISO 1456/1458 and result yaluation according to ISO 4540 rating 8-10

12 CORROSION RESISTANCE

Test in natural salt spray according to ASTM B 117-72hours

Results evaluation according to ISO 4540 RATING 7-10

13. WELDABILITY

Good

14. PACKING

Anti rust oil to be applied on material and each rod to be packed in paper sleeve

15. CERTIFICATE

All certificate related with material heat treatment and plating is required
