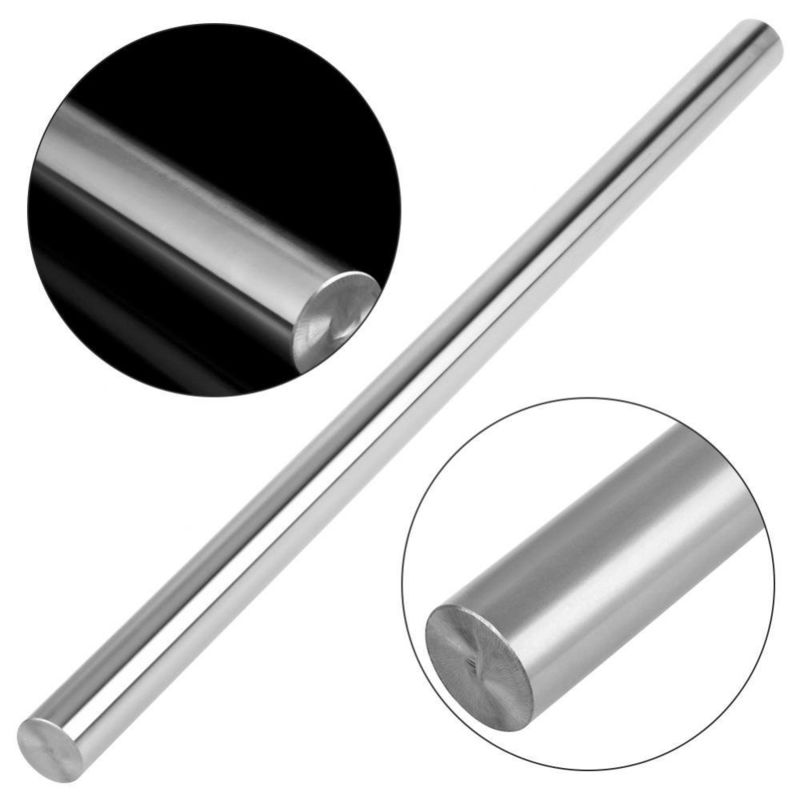

Hard Chrome Plating Induction Hardened Rod HRC50-60 Steel Material

Hard Chrome Plating Induction Hardened Rod HRC50-60 Steel Material

Brand Name:	chunfa
MOQ:	1 ton
Price:	Negotiation
Delivery Time:	30days
Payment Terms:	L/C, T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO9001:2008

Chrome Thickness:

20-30 Micron

Core Hardness:

25-35 HRC

Diameter:

6-100 Mm

Diameter Tolerance:

ISO F7

Impact Strength:

≥ 20 J

Induction Hardness:

HRC50-60

Length:

1000-6000 Mm

Material:

Steel

Product:

Induction Hardened Piston Rod

Roundness:

0.01 Mm

Standard Length:

1000mm - 8000mm

Straightness:

0.5 Mm/m

Surface Hardness:

55-62 HRC

Surface Treatment:

Chrome Plating

Tolerance:

ISO F7

Packaging Details:

Anti rust oil to be applied on material and each rod to be packed in paper sleeve

Supply Ability:

400ton per month

Highlight:

Hard Chrome Plating Induction Hardened Rod

Induction Hardened Rod HRC50-

Steel Induction Hardened Rod

Product Description

High Precision Hard Chrome Hydraulic Cylinder Rod For Heavy Machine

Chrome Thickness:	20-30 Micron	Name:	Induction Hardened Piston Rod
Material:	Steel	Tensile Strength:	Not Less Than 610 N/MM2
Yield Strength:	Not Less Than 355 N/MM2	Surface Condition:	Hard Chrome Plating
High Light:	hardened steel bar , induction hardened chrome bar , precision Induction hardened piston rod

High Precision Hard Chrome Hydraulic Cylinder Rod For Heavy Machine

Detailed Product Description

1. Material: CK45, ST52, 20MnV6, 42CrMo4, 40Cr

2. Diameter: 6mm - 1000mm

3. Length: 1000mm - 8000mm

4. Complete manufactured equipment
5. Condition: Chrome plated, Quenched / Tempered, Induction hardened, Q / T Induction hardened
6. Case depth:1.5mm - 2.5mm Induction hardness:HRC50 - 60

Detailed Description

1.CHEMICAL COMPOSITION

Material	C%	Mn%	Si%	S%	P%	V%	Cr%
Ck45	0.42-0.50	0.50-0.80	0.04	0.035	0.035
ST52	0.22	1.6	0.55	0.035	0.04
20MnV6	0.16-0.22	1.30-1.70	0.10-0.50	0.035	0.035	0.10-0.20
42CrMo4	0.38-0.45	0.60-0.90	0.15-0.40	0.03	0.03		0.90-1.20
40Cr	0.37-0.45	0.50-0.80	0.17-0.37				0.80-1.10

2.MECHANCIAL PROPERTIES

Material	T.S N/MM2	Y.S N/MM2	E%(MIN)	CHARPY	CONDITION
CK45	610	355	15	>41J	NORMALIZE
CK45	800	630	20	>41J	Q + T
ST52	500	355	22		NORMALIZE
20MnV6	750	590	12	>40J	NORMALIZE
42CrMo4	980	850	14	>47J	Q + T
40Cr	1000	800	10		Q + T

3. SUPPLY CONDITION

Ground and chrome plated

4. CHROME THICKNESS

20 to 30 micron

5. SURFACE ROUGHNESS

Ra≤0.2 micron and Rt≤2 micro

6. TOLERANCES ON DIA

ISO f7 on the diameter

7.OVALITY

Half of the tolerance ISO f7

8. STRAIGHTNESS

≤0.2MM/M

9. SURFACE HARDNESS

850-1150HV (vickers 100g)

10.COHESION

No cracks,breaking or detaching after thermic shock(warming up at 300 celsius degrees and cooling

in water)

11 .POROSITY

Test according to ISO 1456/1458 and result yaluation according to ISO 4540 rating 8-10

12 CORROSION RESISTANCE

Test in natural salt spray according to ASTM B 117-72hours

Results evaluation according to ISO 4540 RATING 7-10

13. WELDABILITY

Good

14. PACKING

Anti rust oil to be applied on material and each rod to be packed in paper sleeve

15. CERTIFICATE

All certificate related with material heat treatment and plating is required

We imported one continous chrome plating line from Italy at the beginning of 2016. With this new chrome plating line, we will improve efficiency and product quality a lot.The new chrome plating line is the first one in China and will be the only one in the next five years!
